small and thin DC 3V 10mm dc brushed flat vibrating motor

FOB Reference Price:Get Latest Price
$0.30 - $0.50 / Piece | 100 Piece/Pieces (Min. Order)
Voltage(V):
3V
Output Power:
<0.5W
Lead Time:
Quantity(Pieces) 1 - 10000 >10000
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Chongqing, China
Brand Name:
LNLON
Model Number:
10G20F
Usage:
Electric Bicycle, Home Appliance, Mobile phone, Watch and bracelet,massagers
Certification:
RoHS, ISO 9001, ISO14001, QC080000
Type:
Micro Motor
Torque:
Requests
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Other
Speed(RPM):
12000
Continuous Current(A):
75 mA Max
Efficiency:
Ie 3
Size:
10*2.05mm
motor type:
mini vibrating motor
vibration force:
1.2G
Response time:
about 80mS
Life:
3.0V, 2S on, 1S off, 100,000 cycles
operating voltage:
2.7~3.3V DC
mechanical noise:
50db(A) Max
direction of rotation:
clockwise
insulation resistance:
10MΩ Min
customization:
available
Supply Ability
Supply Ability:
2000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
2000pcs per carton, 470*275*185 mm
Port
Chongqing
Lead Time :
Quantity(Pieces) 1 - 10000 >10000
Est. Time(days) 10 To be negotiated

small and thin DC 3V 10mm dc brushed flat vibrating motor



Basic parameter:

model10G20F-070356001-0151
sizeΦ10*2.05mm
rated voltage3.0 V DC
operating voltage2.7~3.3V DC
starting voltage2.3V DC Max
rated current75 mA Max
rated speed13000±2500 rpm
life3.0V,2S on, 1S off,100,000 cycles
vibration 1.2G Min
direction of rotationclockwise
anti-pulling strength of wire5N(0.5kgf) Min
terminal resistancephase contact   32Ω±15%
phase senrial    56Ω±15%
phase parallel   16Ω±15%
insulation resistance10MΩ Min
mechanical noise50db(A) Max 50
operating enviroment-20℃~60℃, 10~90%(RH),no condensation of moisture

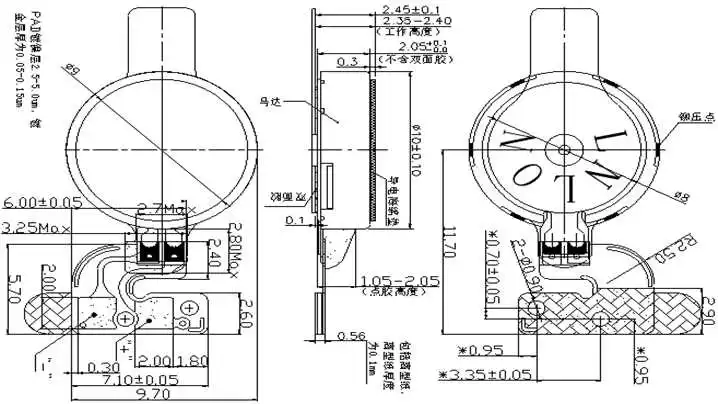

Outline drawing:


Our Main Products:

Advantages:

super small size

large capacity, short lead time

factory sale, competitive price

mature process and stable quality

professional service



Application:

Phone,wearable device,watch,brachet,smart glasses,massager,cosmetic, toothbrush, electronic cigarette, medical device, shaver, toy,eyelash device, air purifier alarm, etc.



Certification:



Company profile:

Industy-leading manufacturer for mini vibration motor in China

Incorporated in 2003

Gross investment of 150 million RMB

>1000 workers, 35000 square meters

Above 0.18 billion annual output

ISO&ROHS certificated

Mian Customer:Huawei, OPPO, vivo, Lenovo, MOTO, Transsion...





Why choose us?

1. Quality: Product with good stability and consistency, complete quality management system, satisfying ISO9001, ISO14001, QC080000 and RoHS, strict control for incoming raw material and supply chain.

2. Technology: Independent D&R team with above 10 years’ experience of design and engineering; products with kinds of proprietaty technologies; with unique design technology for super small size and other highly difficult and customized products.

3. Process: Independent D&R team for self-developed and self-made automated production line; unique process and control methods.

4. Service: Professional service window for business, technology and quality.



Packaging & Shipping
1.  Packaging: Carton
2.  Shipping: By Air, Fedex, DHL, UPS, SF, etc for samples and batch goods, customer to pay for freight.



FAQ:

1. How can I get sample or place order?
To confirm the product specification at first, then we can send you datasheet and free samples for test. You can
send us order by anyway, email, skype, wechat, or phone.

2. Do you have MOQ?
We do not have MOQ limit, and accept small quanity order.

3. What is your terms for delivery and payment?
EXW, FOB, CFR, CPT for delivery; T/T, credit card or paypal for payment.



Any question or need, please contact us.
